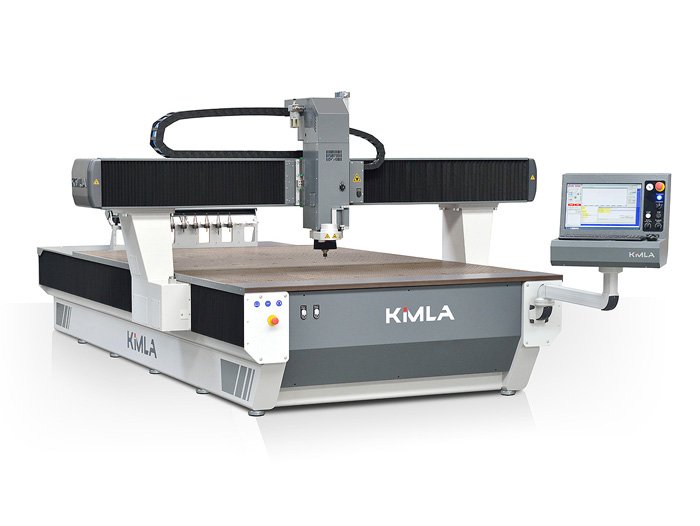

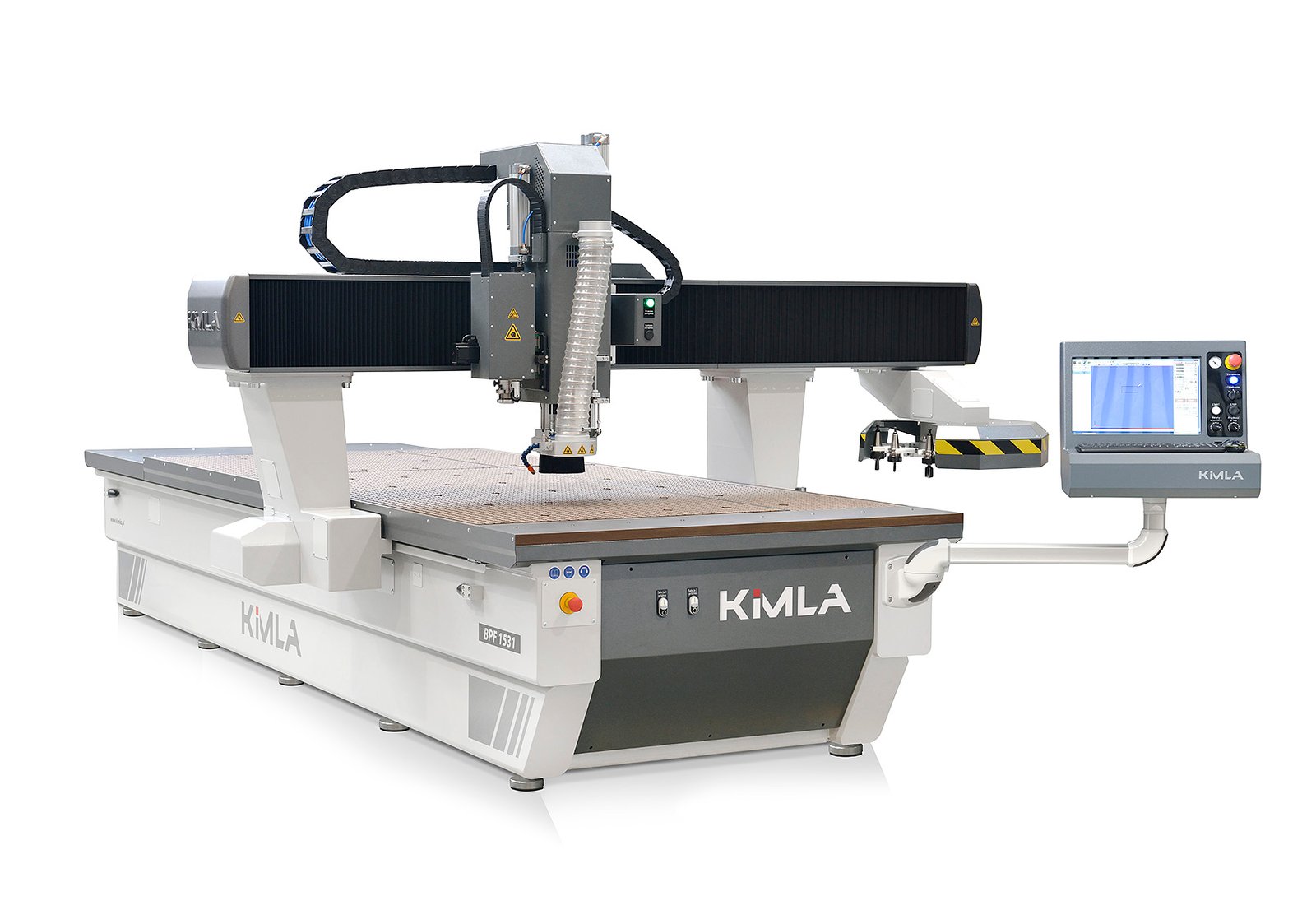

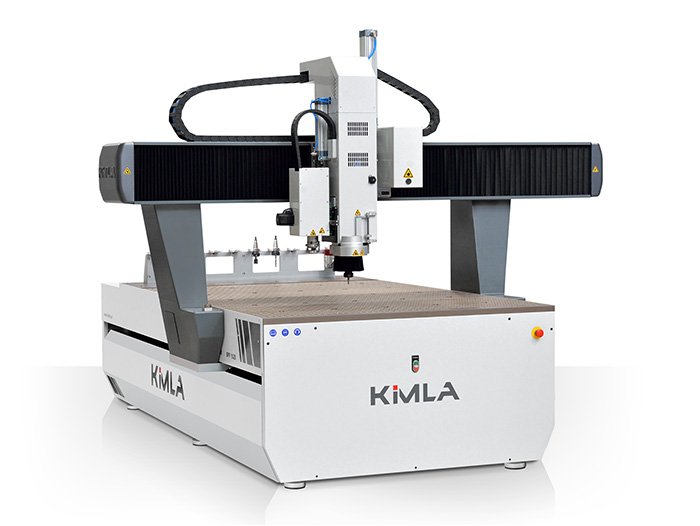

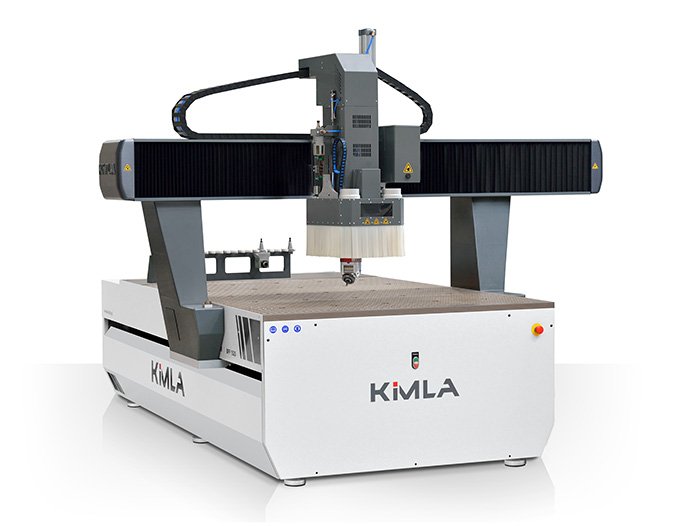

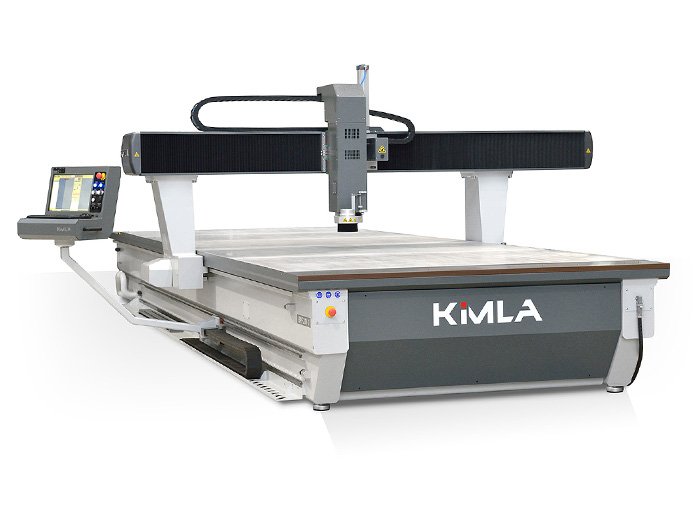

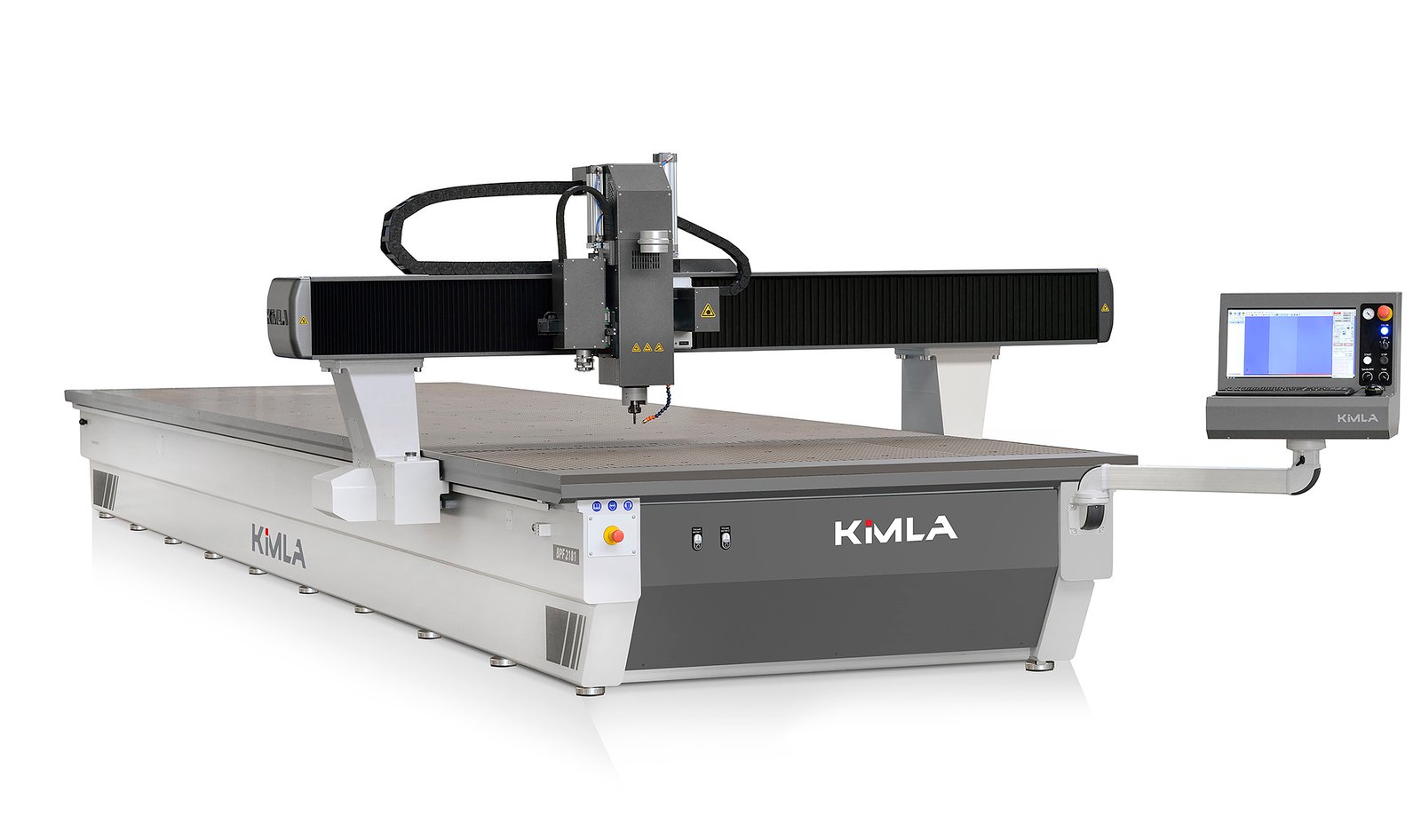

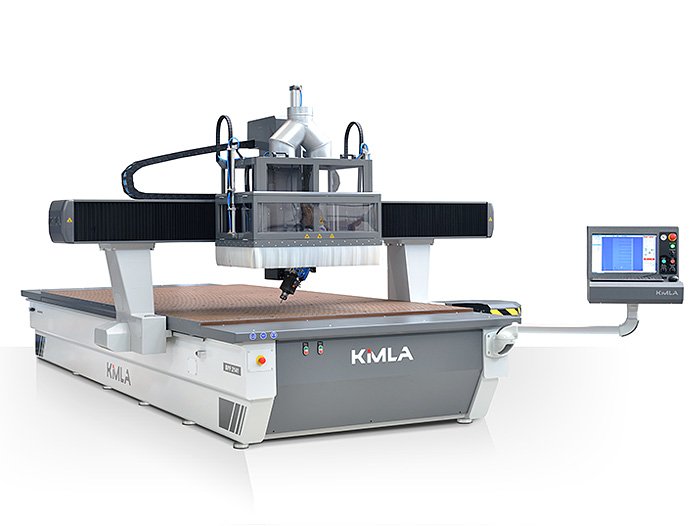

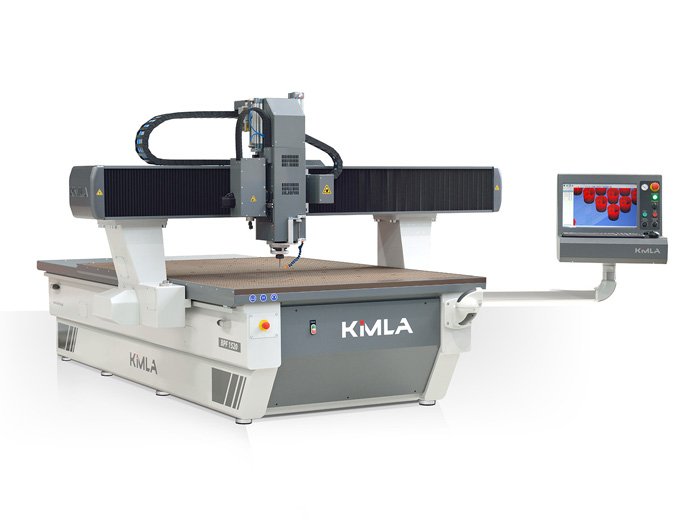

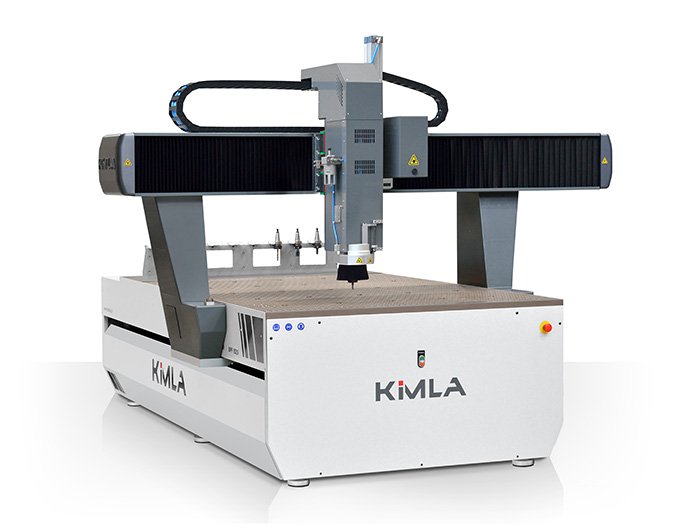

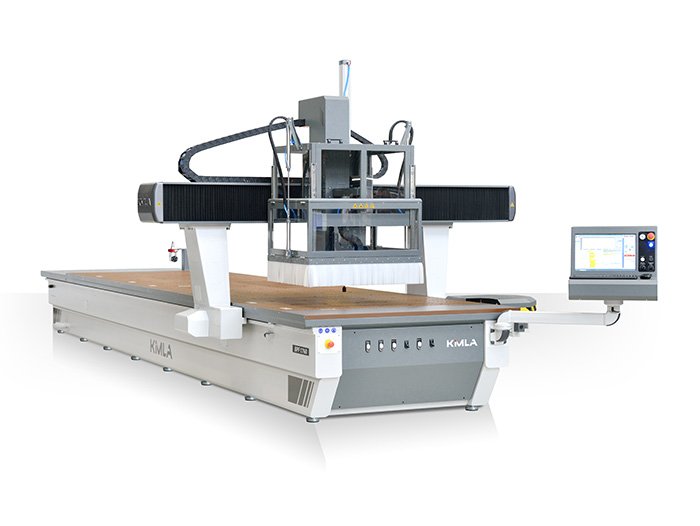

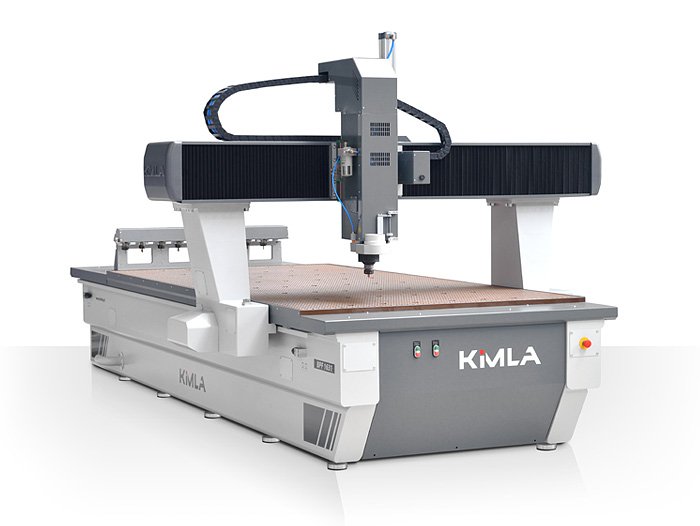

Kimla's industrial CNC routers are designed for heavy production work, featuring high efficiency with a robust and stable construction.
The routers perform jobs both flat (cutting out shapes) and three-dimensional (carving and engraving). They are equipped with an automatic tool changer available in a linear or rotational version, depending on the size of the table. Industrial CNC machines are equipped with a suction foot or suction hood, an effective means of dust extraction from the milling station. The suction hood may be set automatically at different heights, depending on the length of the attached tool.
Various sizes, adjustments and additions are available, enabling the Kimla CNC router to be customized based on your needs.
basic options
| Working area dimensions [mm] |
Width | 1500, 1600, 2100, 2600, 3100 ... |
|---|---|---|
| Lenght | 2100, 2500, 3100, 4100, 5100, 6100, 7100 ... | |
| Z axis range | 200, 300, 400, 500, 600, 700 ... | |
| Spindles | 24 000 rpm | 7 kW, 9 kW, 12 kW, 14 kW, 16 kW, 18 kW, 20 kW |
| 40 000 rpm | 5 kW | |
| 50 000 rpm | 3 kW | |
| Cooling | Air Refrigerating unit |
|
| Control system | Digital AC Servo Drives | |
| Table type | T-slot table | |
| Negative pressure table | ||
| Vacuum table | ||
| Hybrid table | ||
| Automatic tool changing (ATC) |
no change | |
| linear storage | ||
| rotating storage | ||
| Automatical correction of the tool lenght | ||
| Panel with control computer | ||
additional options
| Oil mist cooling | Automatic | |
|---|---|---|
| Heads | Active, oscillating knife | |
| Creasing | ||
| Active, drag knife | ||
| Knife for cutting film | ||
| Writing | ||
| Pouring | ||
| Scanner | Touch | |
| Laser | ||
| Rotary axis | "B" on the table | |
| "B" inclined spindle | ||
| "C" on the spindle (for angular units) | ||
| Pressure mats | Laser curtains | OHS fence |
| Presser foot | Suction foot | Pressure and suction foot |
| Dust extraction system | Basing system | Camera sighting system |
| Detail description printing system | ||
additional options
Tool magazine - turret

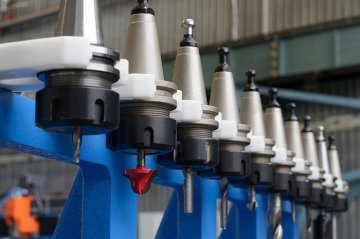

Tool magazine - linear
Cooling with oil mist
Touch scanner

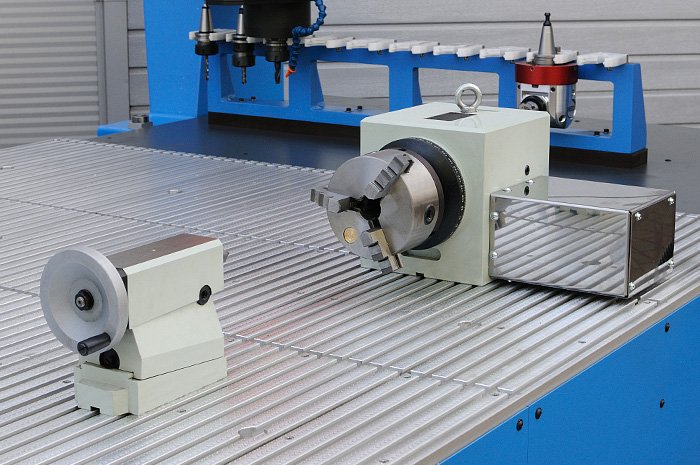

"B" rotary axis on the table
The tilting axis "C" tilts the spindle
Rotary axis "C" on the spindle

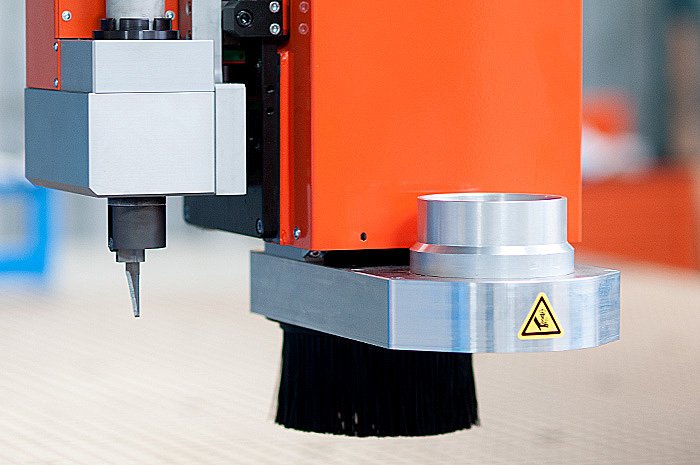

Oscillating Knife Head
Head - active with a knife without oscillation
Creasing - Head
Writing- Head
Pouring - Head
Pressure mats
Laser curtains
Safety fencing
Presser foot

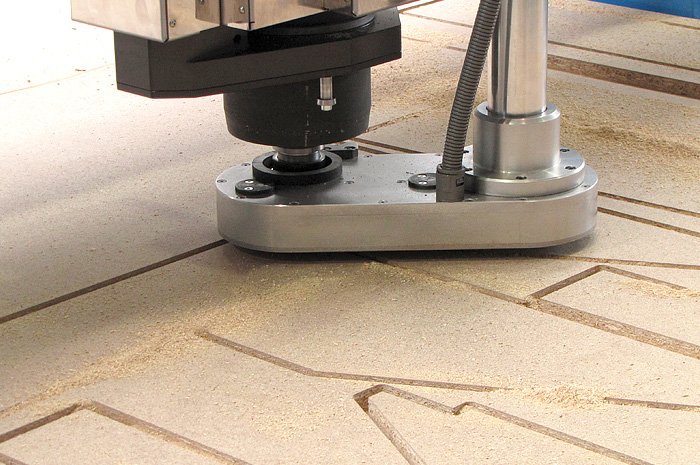

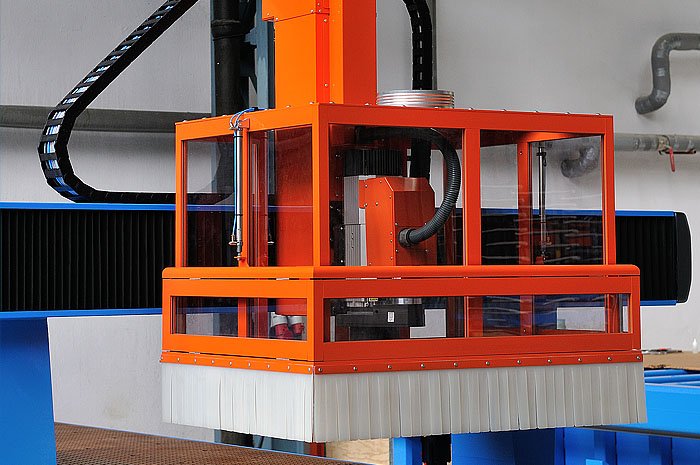

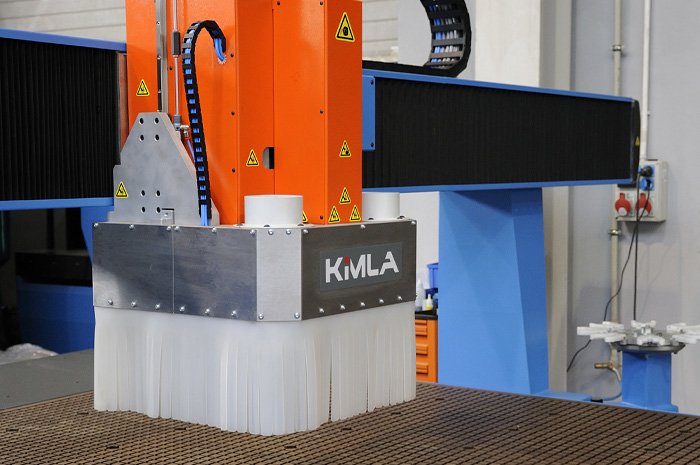

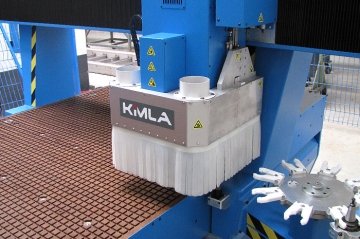

Extraction foot
The presser/extraction foot
Dust extraction
Positioning system
Camera positioning system
Printing system for parts description
T-slot table
Underpressure table

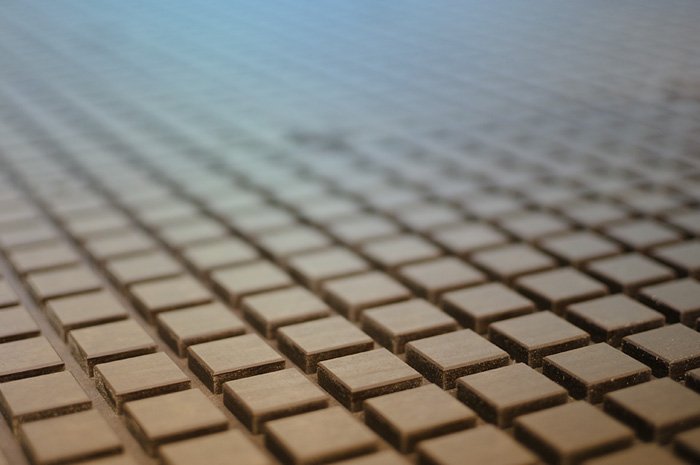

Vacuum table

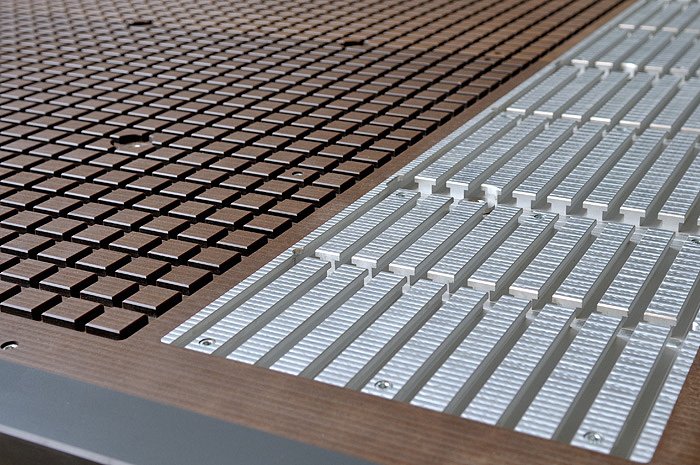

Hybrid table
Automatic tool length compensation

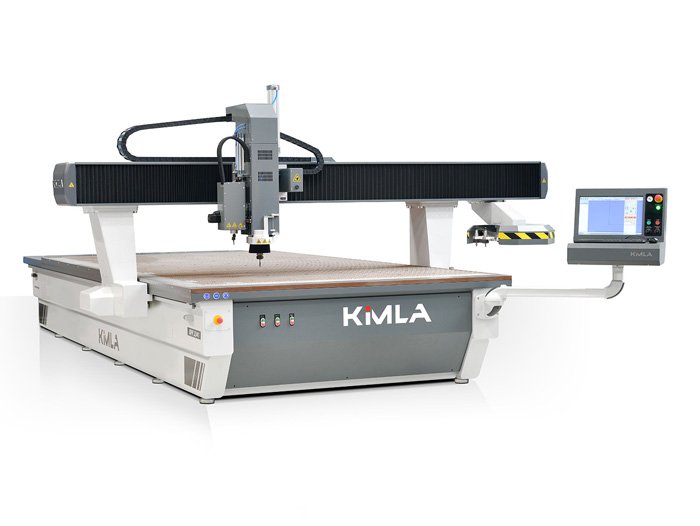

Control panel on aerial arm

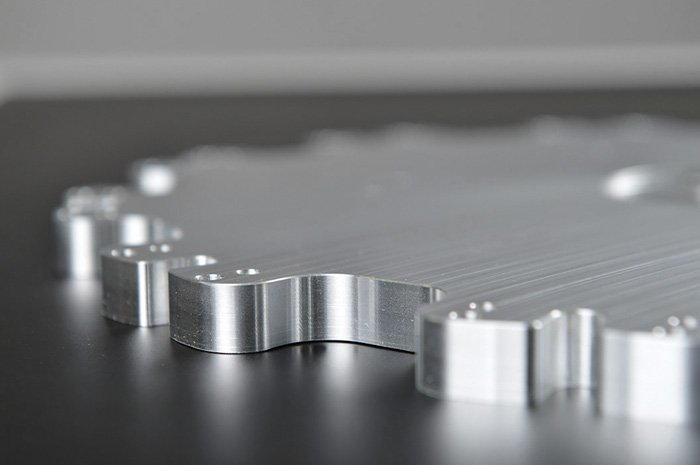

Aluminium sample from BPF Milling router

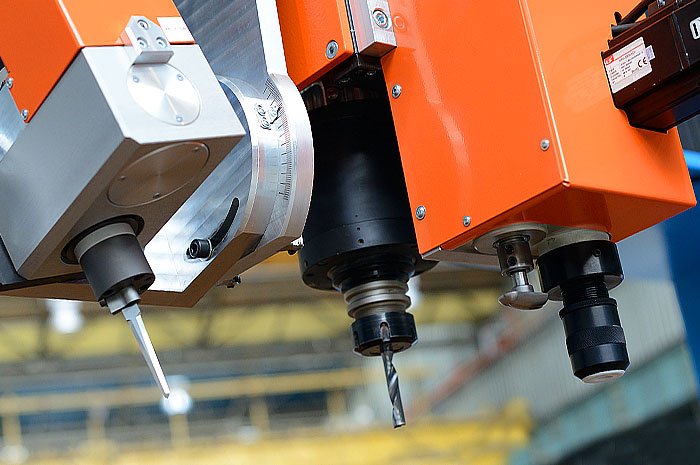

Cutting head
Cutting head and guard

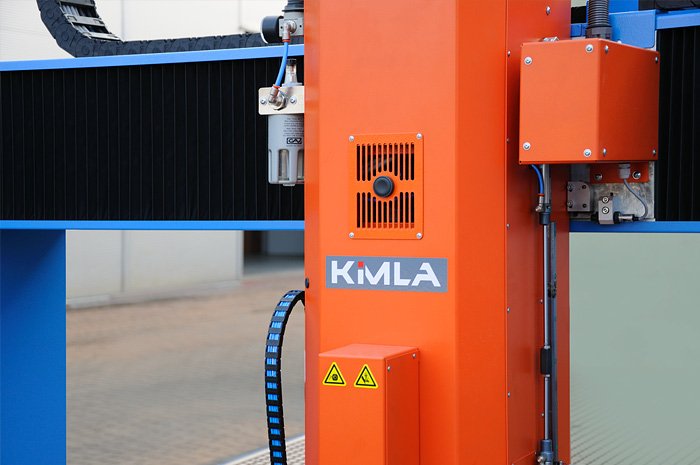

"Z" axis kimla cnc router

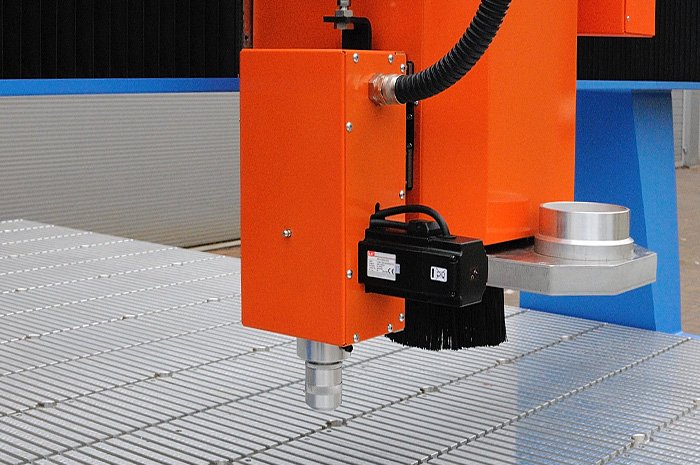

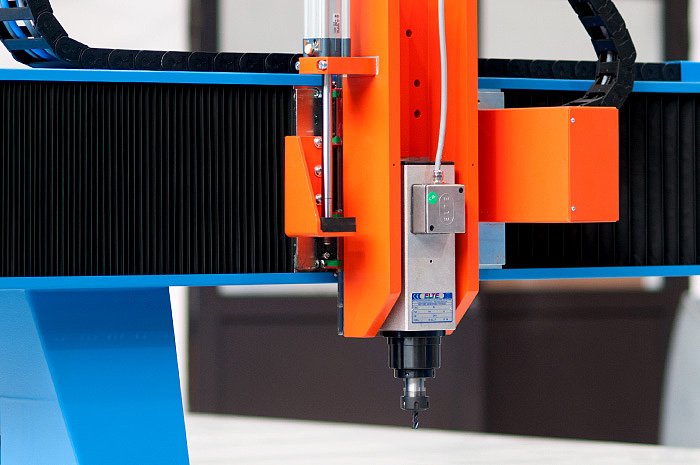

Milling head
Pneumatic oscillating knife
Guard
Cutting-creasing head

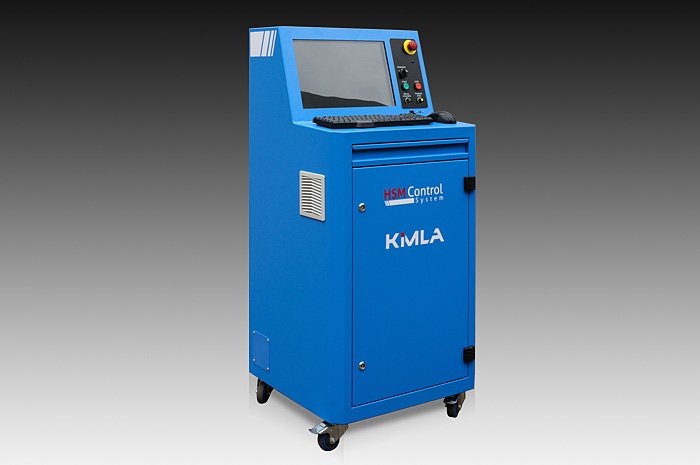

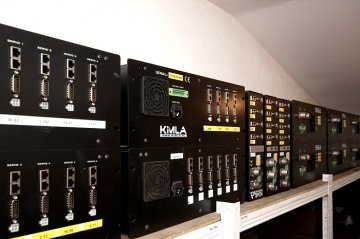

Control case for KIMLA machines
Pneumatic oscillating knife
3 edge cutter
Electric oscillating knife head
"Z" axis Kimla milling router
Spindle guard
Plates conveyor
Vacum table on BPF
Wire guide

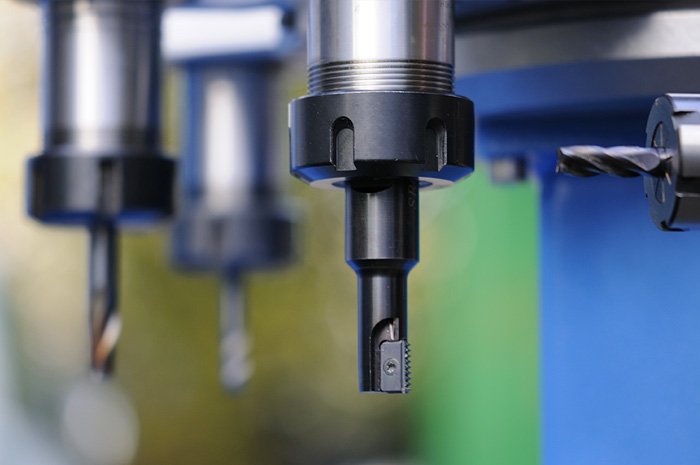

Changing tool
Guard

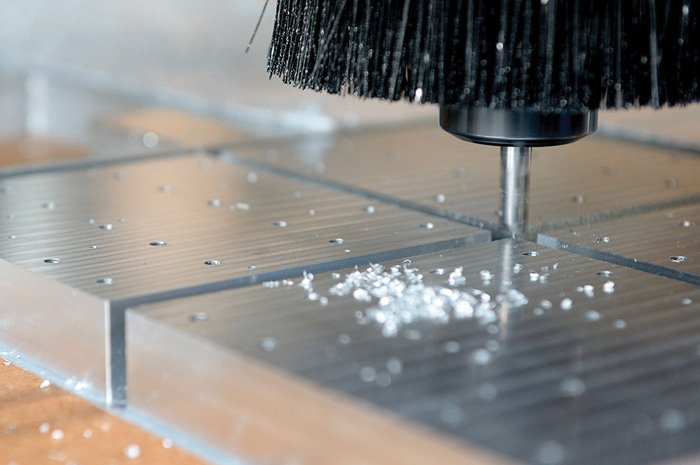

Milling aluminium on BPF

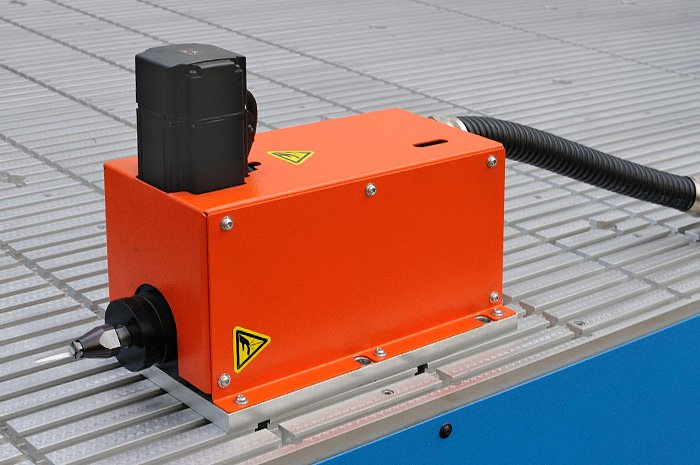

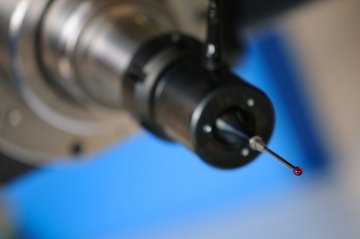

Touch scanner
Electronics storage

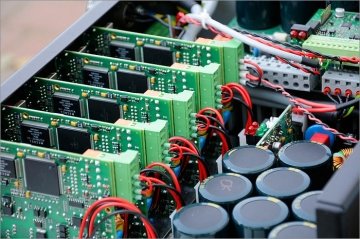

Electronics

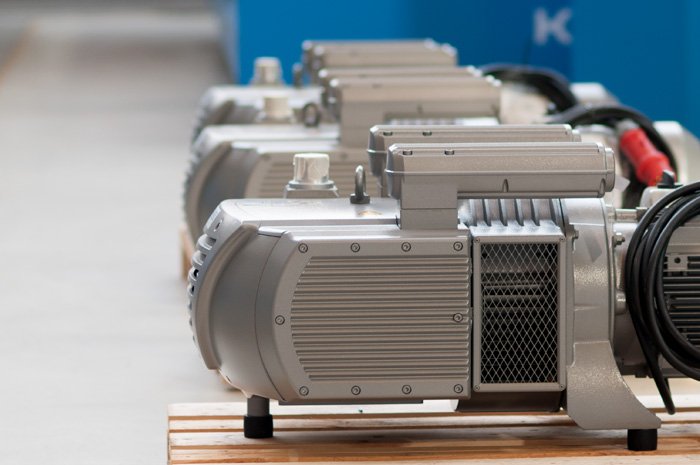

Vacum pumps
5axis milling router with cutting head
Rotary tool storage with guard
Vacum and hubrid table

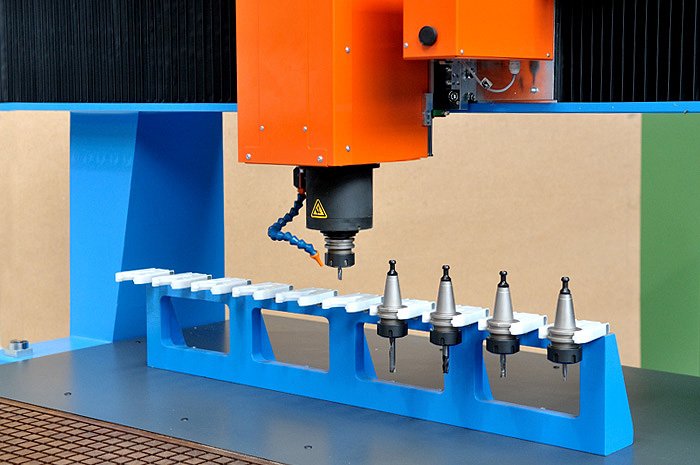

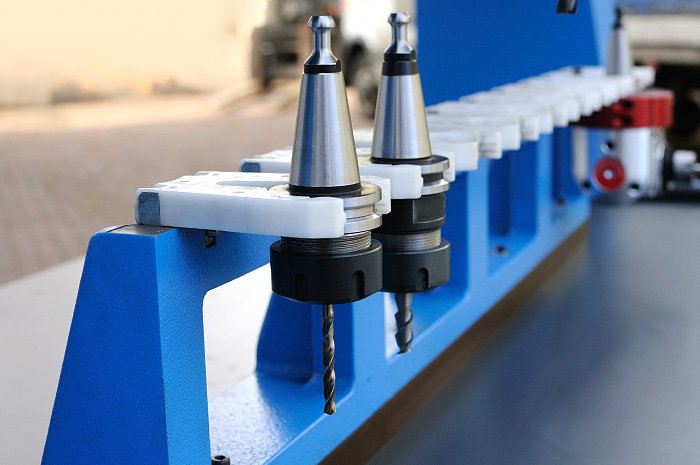

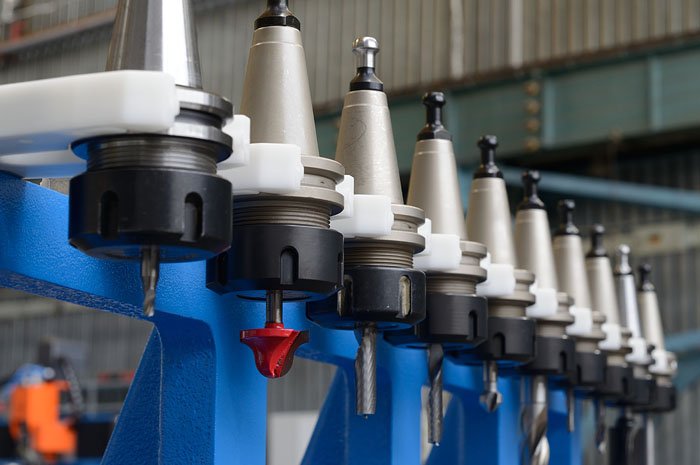

Linear tool storage

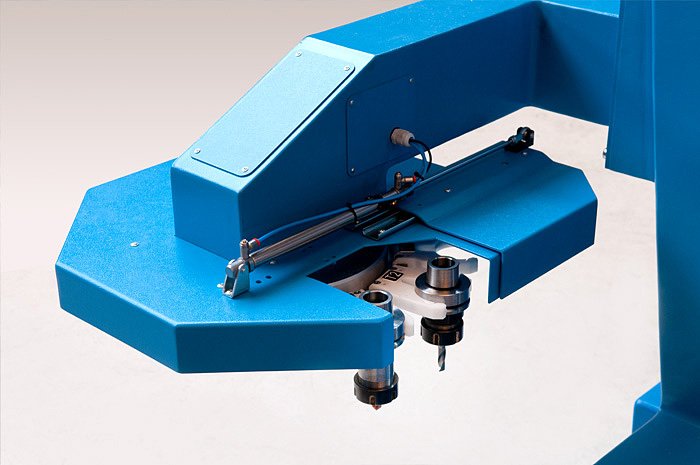

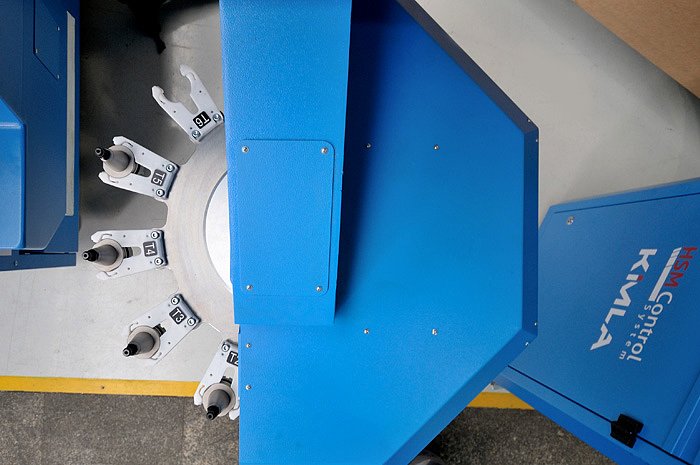

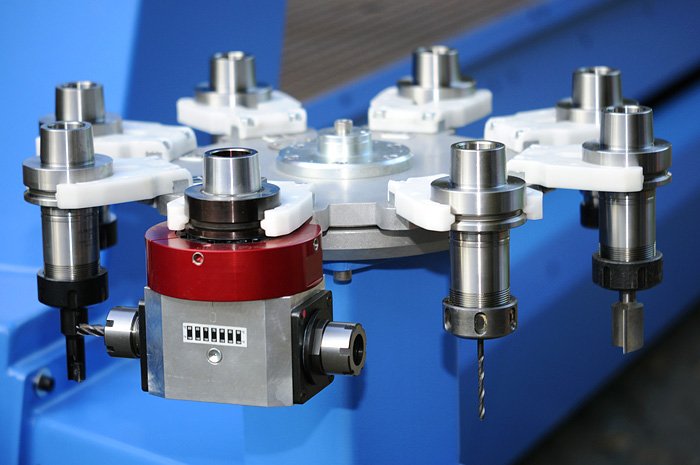

Rotary tool storage
Creasing - cutting head

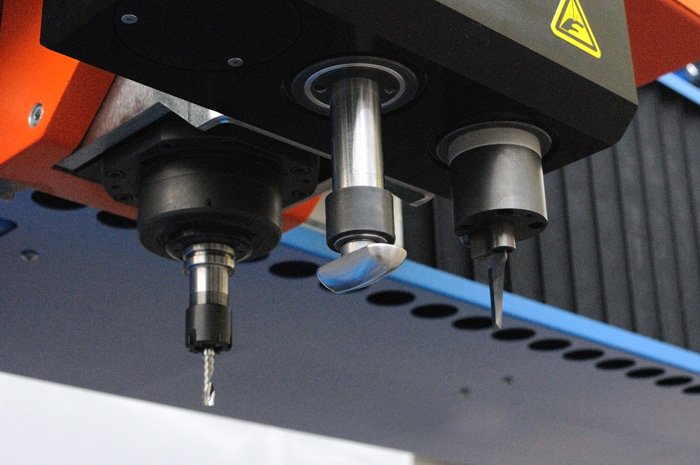

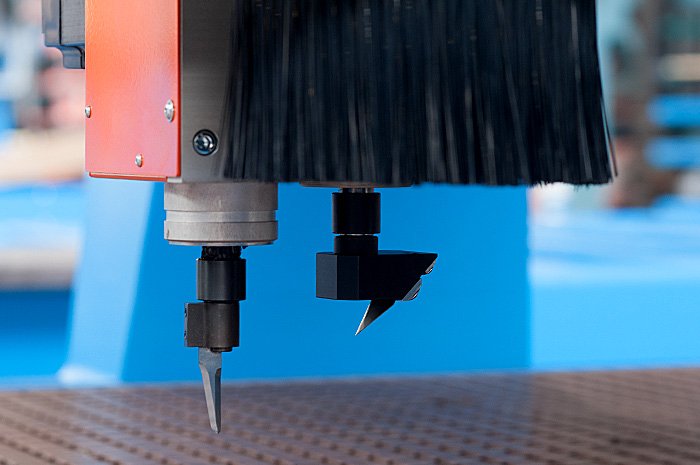

Cutting heads

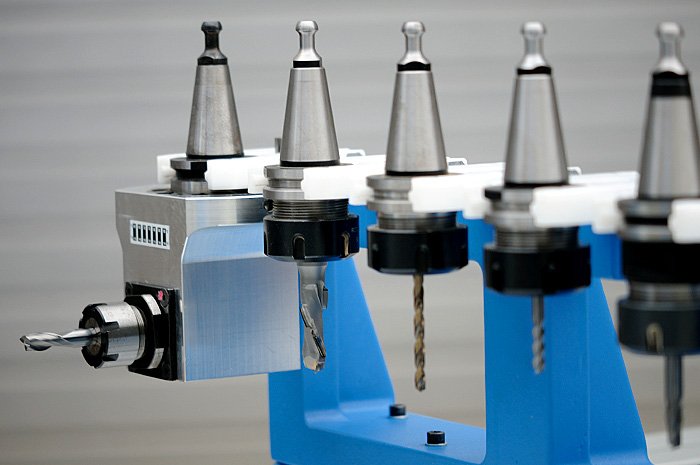

Tool storage

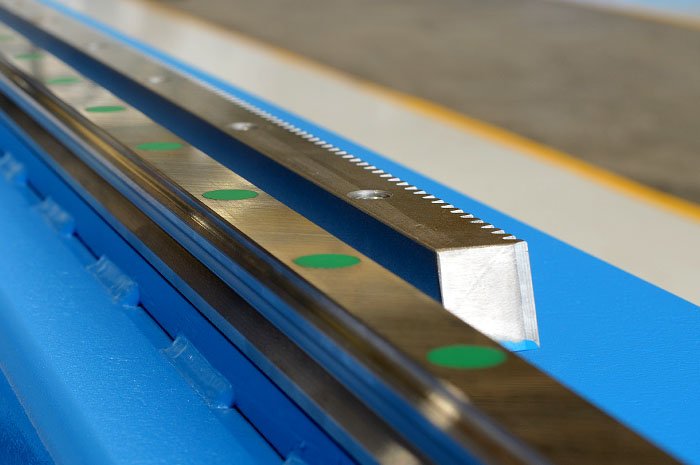

Linear guide and toothed rack

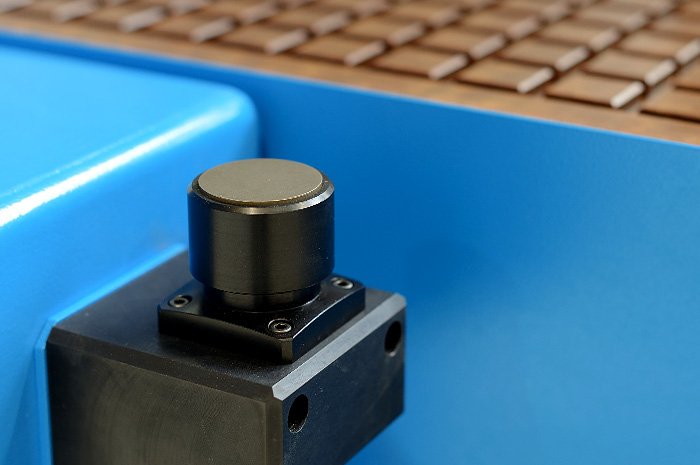

Tool length sensor
Axis of rotation
Electric oscillating head
Tool storage
Tool storage

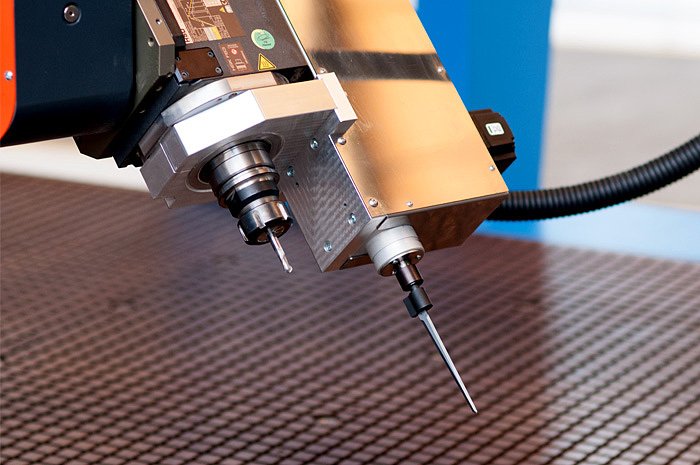

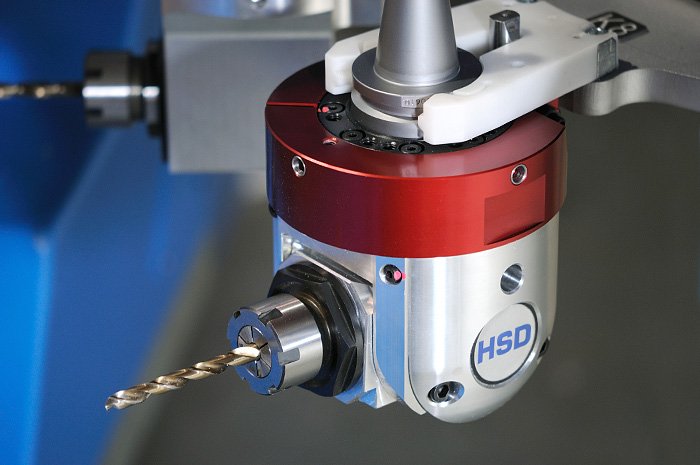

Angle head for saws and cutters with a set angle
Making a worm screw with a variable stroke
Nesting

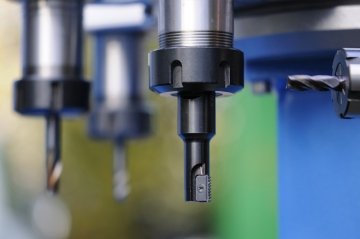

Tools
Rotary tool storage
The interior

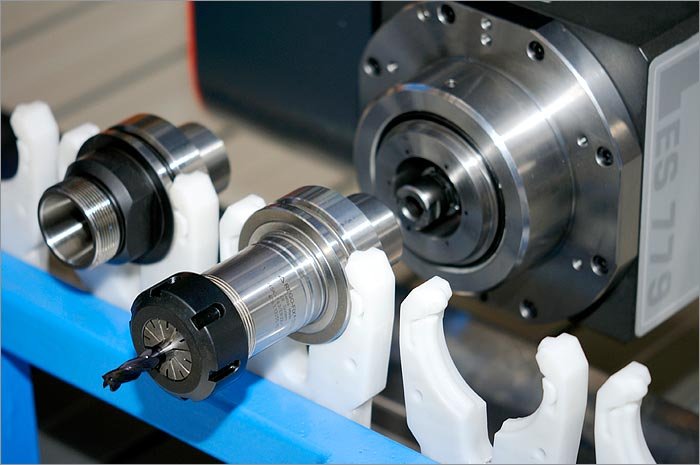

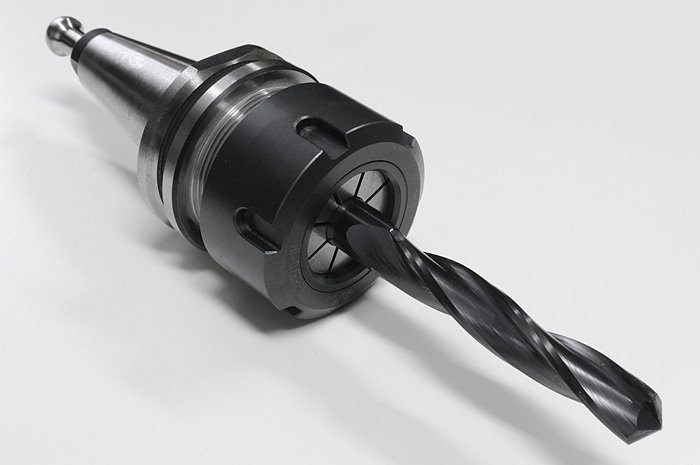

Tool holder
CNC milling

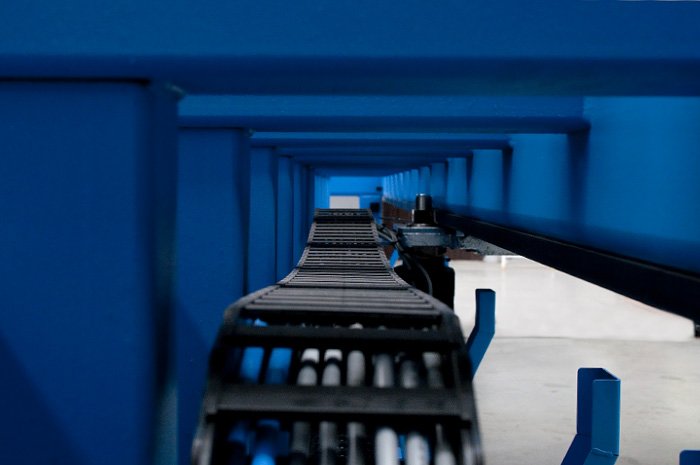

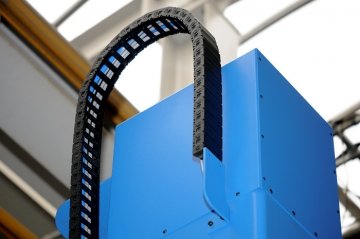

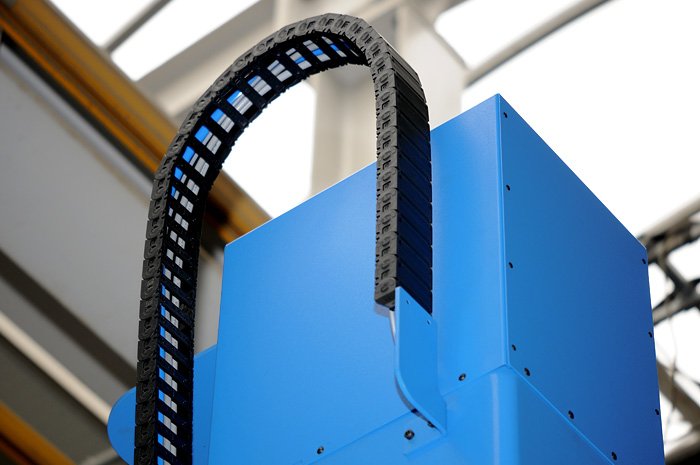

Cable carrier on BPF milling machine
Luminous advertising
Furniture fronts
30mm acrylic sheet
CNC 20mm HDPE cutting
Acryl cutting
Advertisment parts of Dibond
The fastest milling cutters for plexi
Plastic cutting
Applying adhesive
The egde of a multi-layer plate after machining
Machining in dibond
Luminous advertising

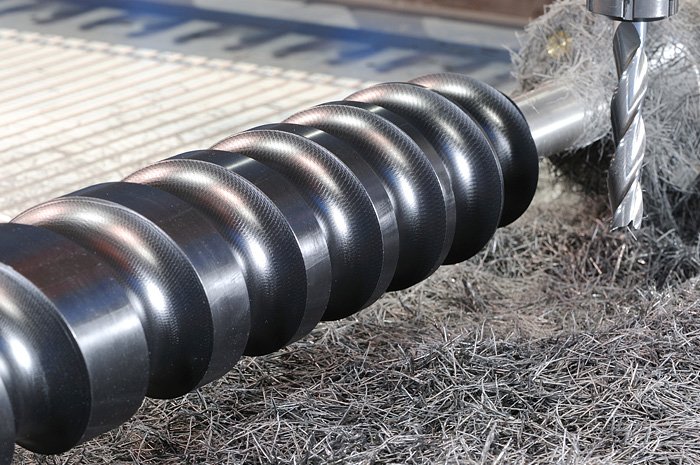

Worm screw
Machining of plastics

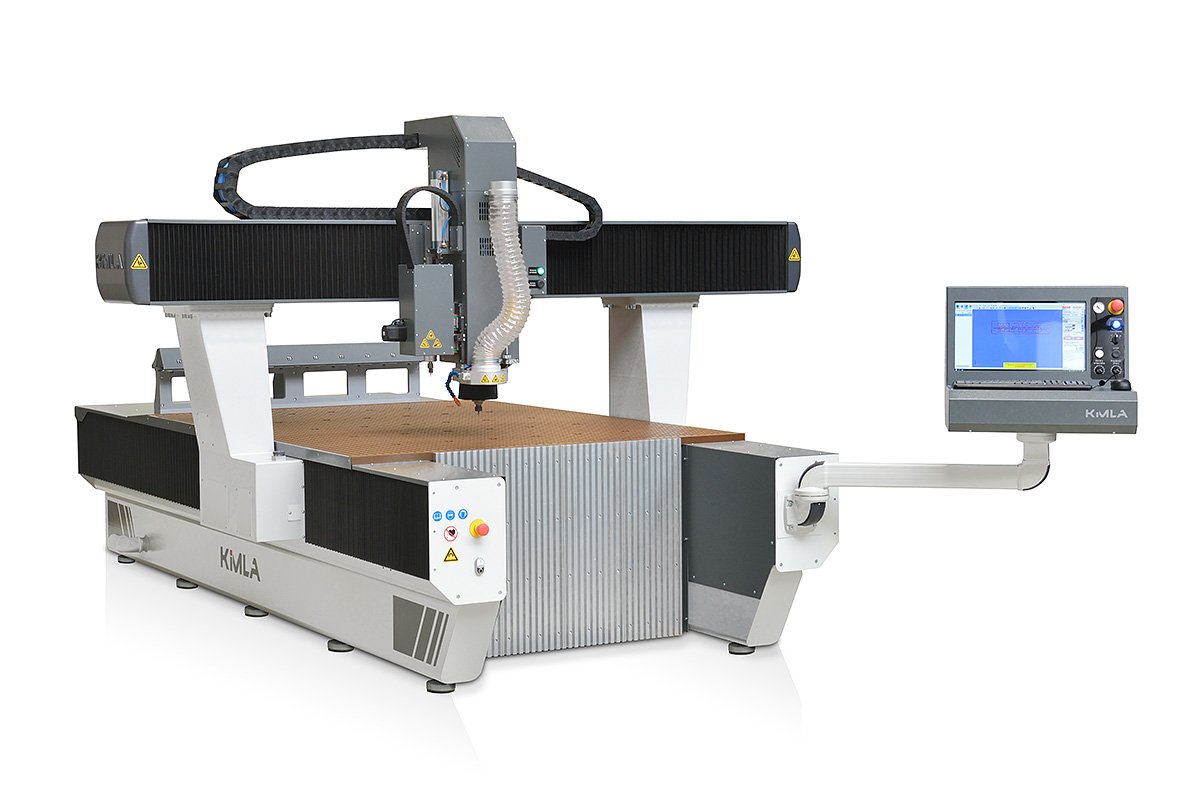

Industrial CNC router with vertical table
Drilling, threading and milling in plastic on the B rotary axis
Door machining on Kimla Industrial CNC Router
Plexiglass milling on Kimla CNC Industrial Router
Plastic milling - roughing with Kimla BPF Industrial CNC Router
Cutting packaging foam with Kimla Industrial Router
Milling aluminum profiles on Kimla Industrial CNC Router
Printing and sticking labels on industrial router
Cutting with a 5D oscillating knife
Cutting aluminum profiles with a saw fi = 350mm
Threading in aluminum profile on BPF
Milling of foam, sponges on BPF
Cutting rubber on an industrial router
Thermal flow drilling

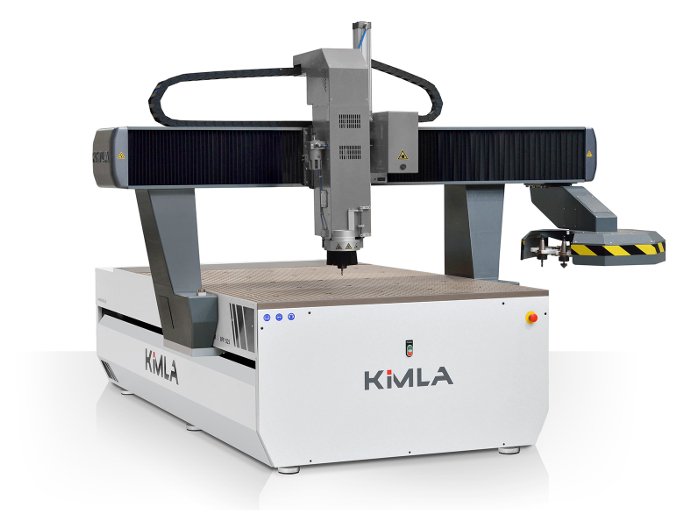

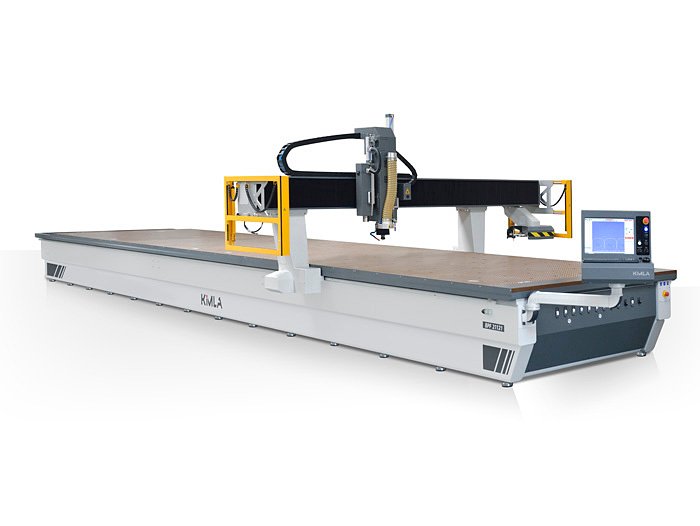

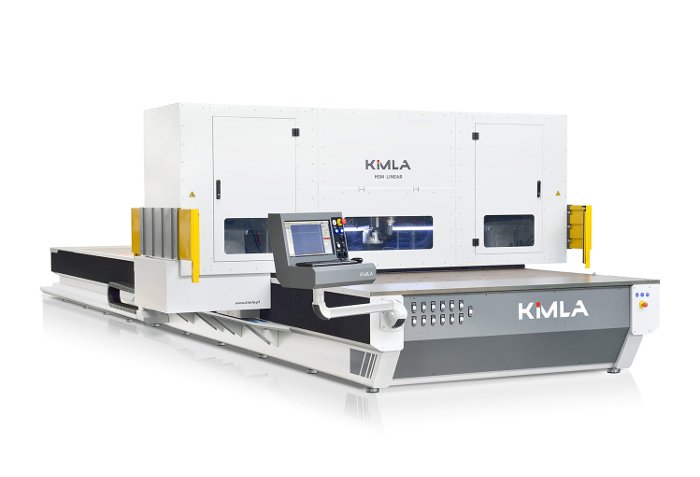

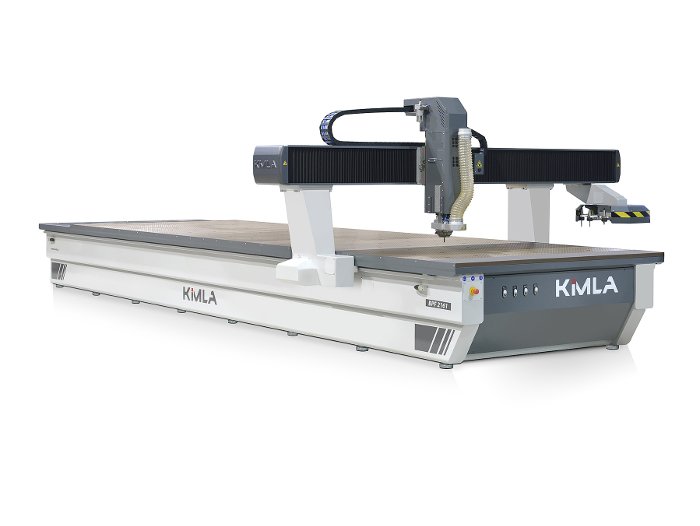

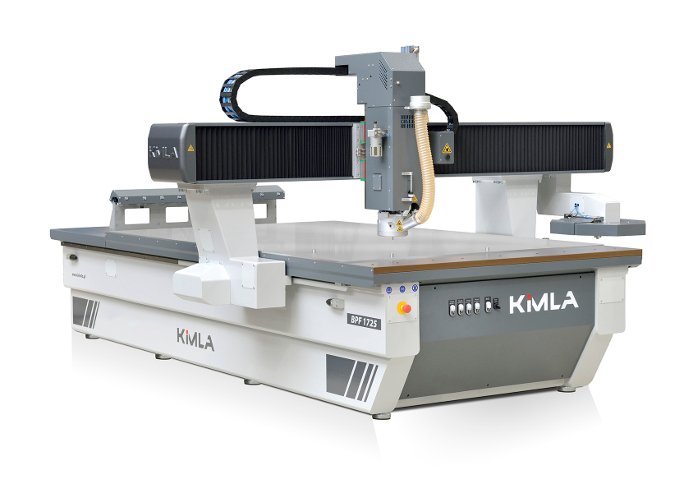

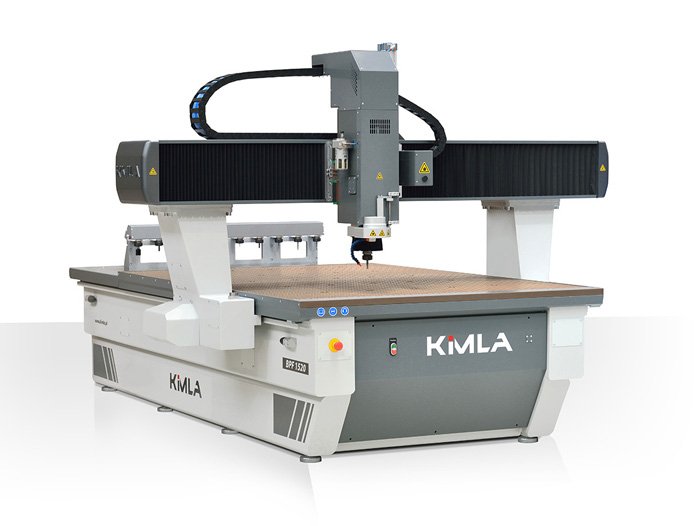

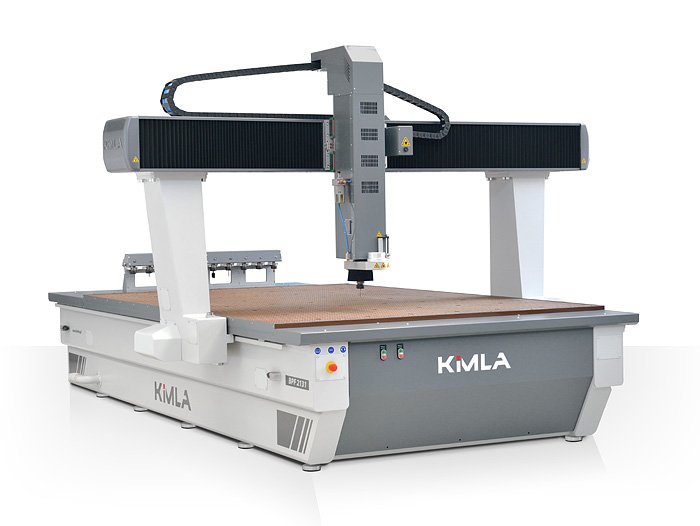

Industrial router BPF
Corian
Large-format aluminum milling machine
MDF fronts machining
Aluminum profile machining
Soft foam cutting
HDPE polyethylene 20mm 0.3m/s processing!
25mm plexiglas cutting
Machining center with inclined spindle. 4 axis
Large-format milling machine for dibond
Aircraft parts cutting
4-axis CNC with extraction foot
Machining centre for filling lines
Refrigerator door machining
Metal door milling
Glue application and installation of solar collectors
Milling polipropylene for galvanic bathtubs
Plotter for die boards and prototypes
Milling a worm screw for bottle conveying
Milling machine for long profiles 7000mm
Machine x2600 y4000 z700 - 3D operating
CNC milling, cutting a curve for a T-slot
Model plate - CNC machining
Chipboard nesting
Cutting carpets 400mm/s
The fastest milling machine for models - 1m/s!
Nesting and the 4th axis
