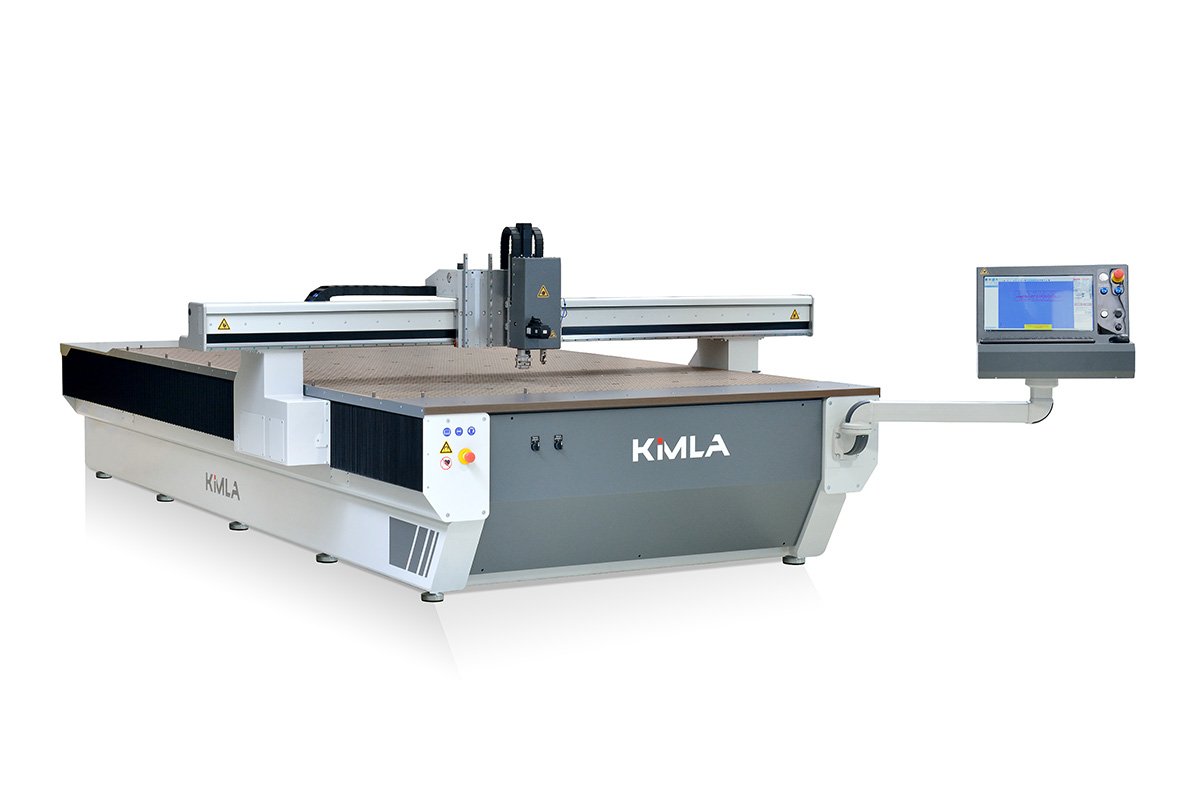

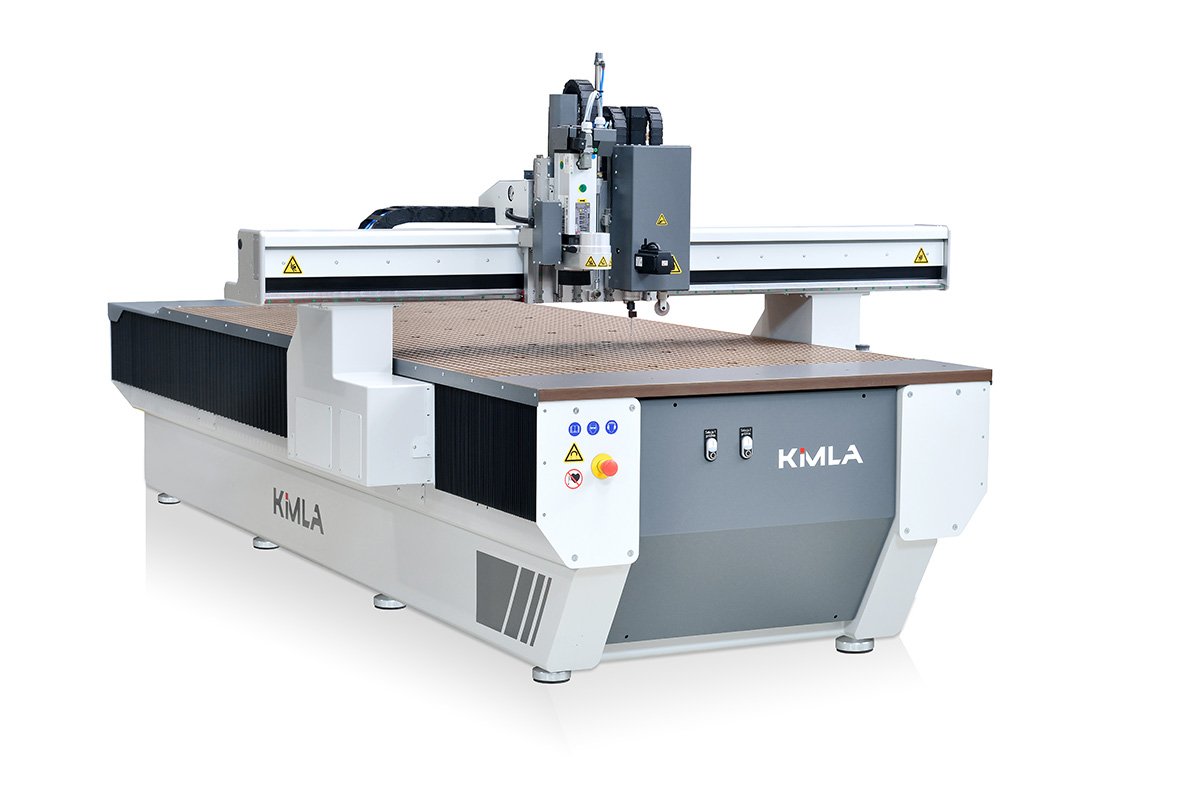

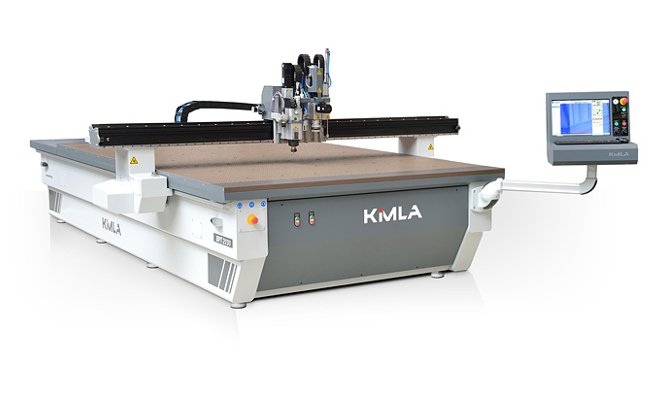

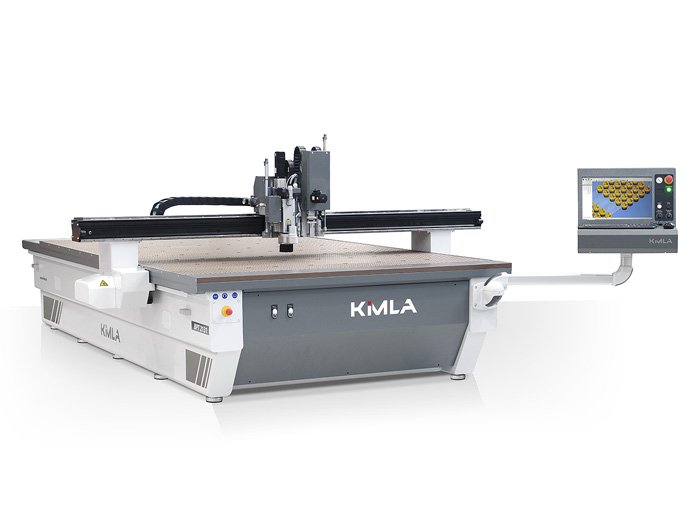

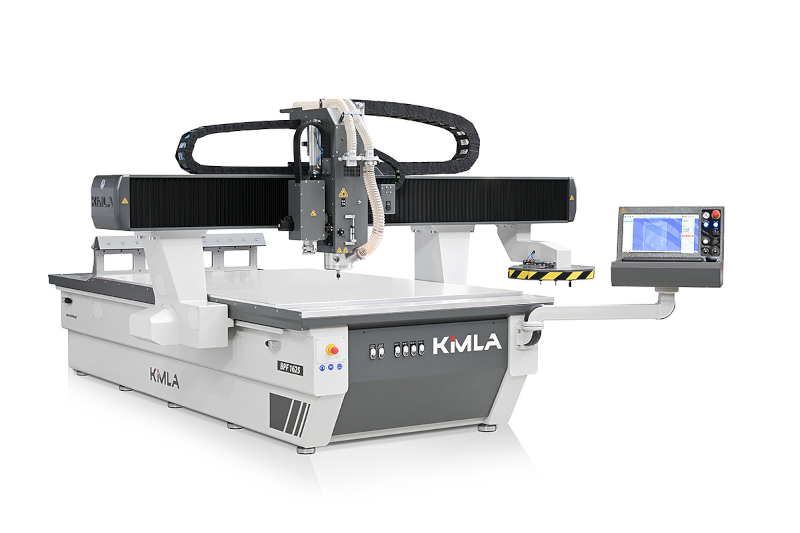

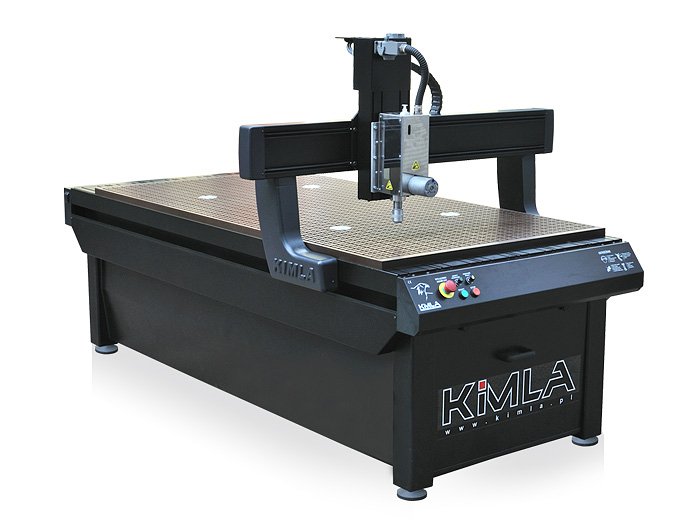

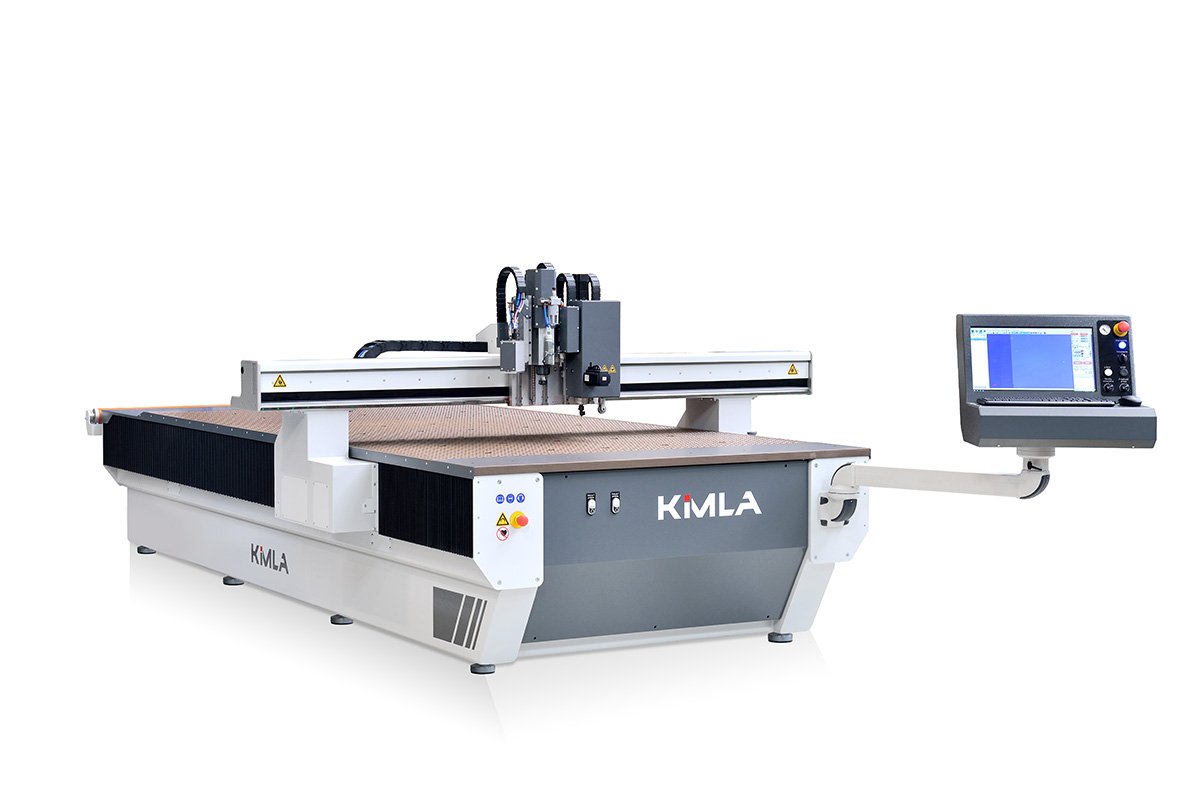

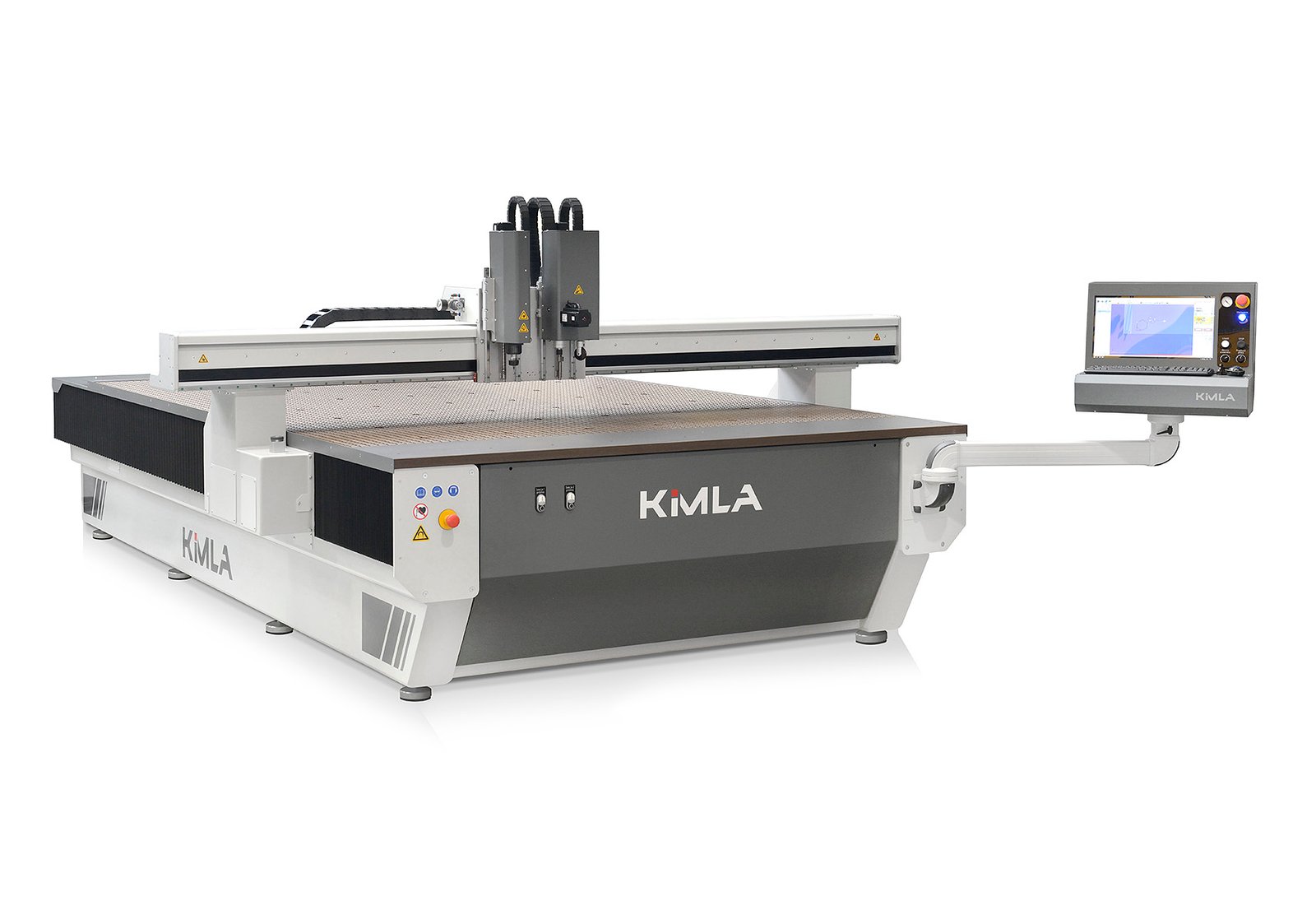

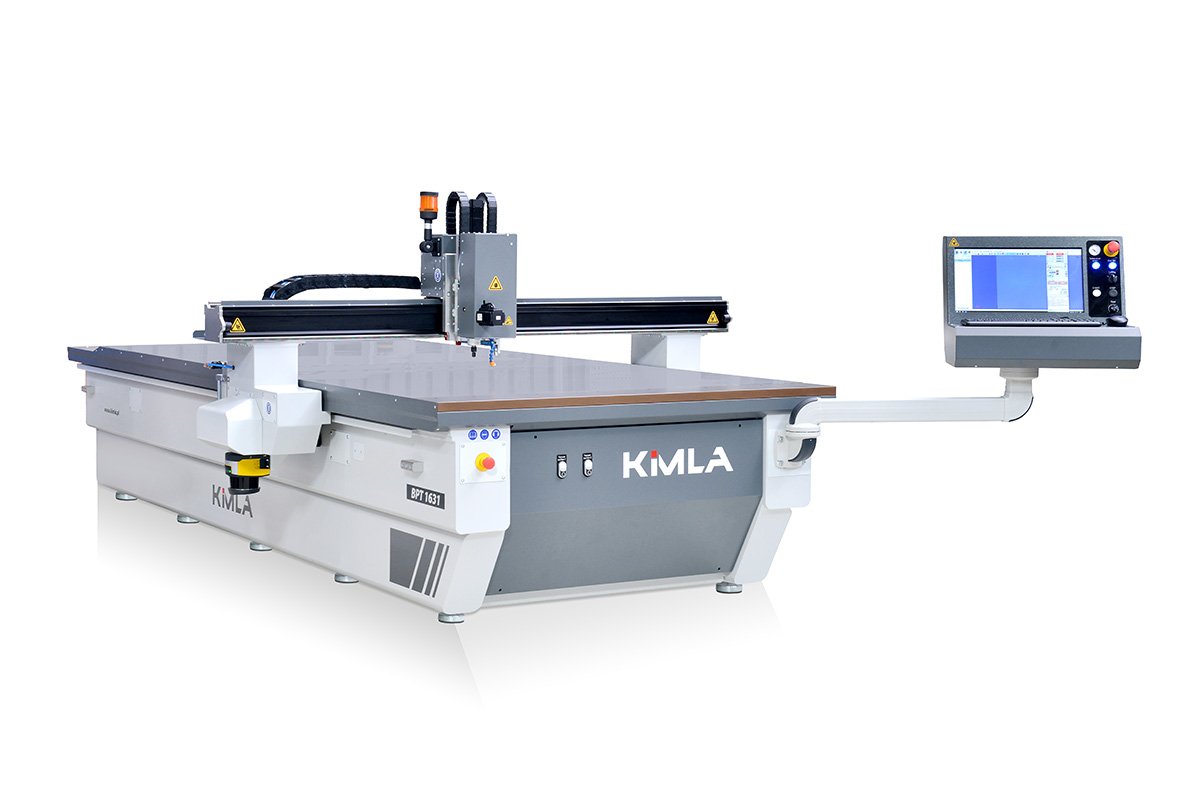

The Kimla universal cnc cutters are machines used for cutting out with oscillating or drag knife. All cutters are equipped with active knife, controlled with servomotors. Machines with oscillating knifes may be furnished with pneumatically or electrically driven heads. Pneumatic heads are high-frequency heads, providing for very high travel speeds in softs materials. Pneumatic heads are used for highly efficient machining of foamed materials of little density. For machining of harder materials and of higher density, e.g.:sealand material, also reinforced with net and steel sheet, the electric heads are recommended that-thanks to employment of two servomotors-feature a very high power. One servomotor is used for adjisting the angle od the knife, and the other one for driving oscillating movement. The unique head power may be obtained through usage of 0.4 kW motor. It allows for performance of production works in different materials, even the ones that once used to be considered impossible to be machined with a cutter.

The universal cutter is employed also in single-layer or multiple-layer cutting of fabrics. The materials are fixated on negative pressure or vacuum tables, divided into sections, thus facilitating works in many works areas.

All machines are equipped with control panels with industrial control computer, together with the proper software. The software, except for controilling machines, allows for preparation of tool path and optimal nesting. It caters for maximum usage of the material within a very short preparation period.

basic options
Range area [mm] Width 1800, 2200, 2700, 3200 ...
Lenght 1600, 2100, 2500, 3100, 4100, 5100, 6100 ...
Z axis range 200
Oscillating Knife Pneumatic
Electric 1x servo, 2x servo
Drive system Linear Drives(High Speed)
Digital Servo Drives AC High Speed
Table type Vacuum table
Control computer
additional options
Heads Milling head (spindle)
Creasing head
Marking head
Writing head
Scanner Touch
Laser
Joystick control
Safety mats
Basing system
Conveyor system
Receiving table and loading
video play
Cardboard cutting on Kimla CNC Cutter
video play
Felt cutting on Kimla CNC Cutter
video play
High speed cutter and 80mm cardboard
video play
Insulating material cutting on Kimla CNC Cutter
video play
Cardboard cutting on Kimla CNC Cutter
video play
Car mats cutting on Kimla CNC Cutter
video play
MultiMill on high speed cutter
video play
Cardboard cutting on Kimla CNC Cutter
video play
Blackbird with oscillating knife and creasing wheel
video play
Cutter tool for upholstery materials
video play
Multilayer fabric cutting
video play
EPE foam cutting
video play
Automatic vision marker recognizing
video play
CNC cutter - cutting footwear parts
video play
The fastest CNC cutter - max feed 1.7m/s
video play
Table for cutting - high speed 1.7m/s
video play
Cutting mineral wool
video play
Cutting a seal from a reinforced plate
video play
polyester sheet, active knife
video play
Car carpeting cutting
video play
Leather creasing and cutting
video play
Reinforced graphite seal cutting
video play
Cutting leather with a thickness of 5mm, 100mm/s
video play
Cutting 12mm rubber
video play
Cutting microporous rubber
video play
Cutting with an oscillating knife
